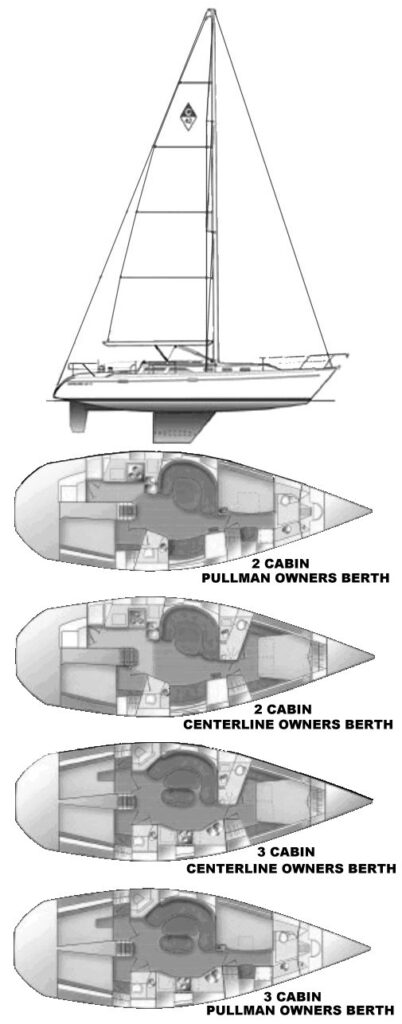

CATALINA 42 MK II
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1995
Number Built:
300
Dimensions
Length Overall (LOA):
12.76 m
Length Waterline (LWL):
10.97 m
Beam:
4.22 m
Draft (Max):
2.03 m
Weight & Ballast
Displacement:
9,299 kg
Ballast:
3,765 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
40.42 m²
Mainsail Area:
33.66 m²
Total Sail Area (calculated):
74.08 m²
Sail Area (reported):
74.04 m²
I (Fore Triangle Height):
16.15 m
J (Fore Triangle Base):
5.00 m
P (Mainsail Hoist):
14.25 m
E (Boom Length):
4.72 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
4JH2E
Engine Power:
50 HP
Fuel Capacity:
144 L
Water Capacity:
522 L
Performance Ratios
Hull Speed:
8.04 knots
SA/Displacement (Calculated):
16.75
SA/Displacement (Reported):
17.09
Ballast/Disp Ratio:
40.49%
Displacement/Length:
196.15
Comfort Ratio:
25.38
Capsize Screening:
2.03
S-Number:
2.76
Notes
Shallow draft wing keel version: 4.92'/1.5m
