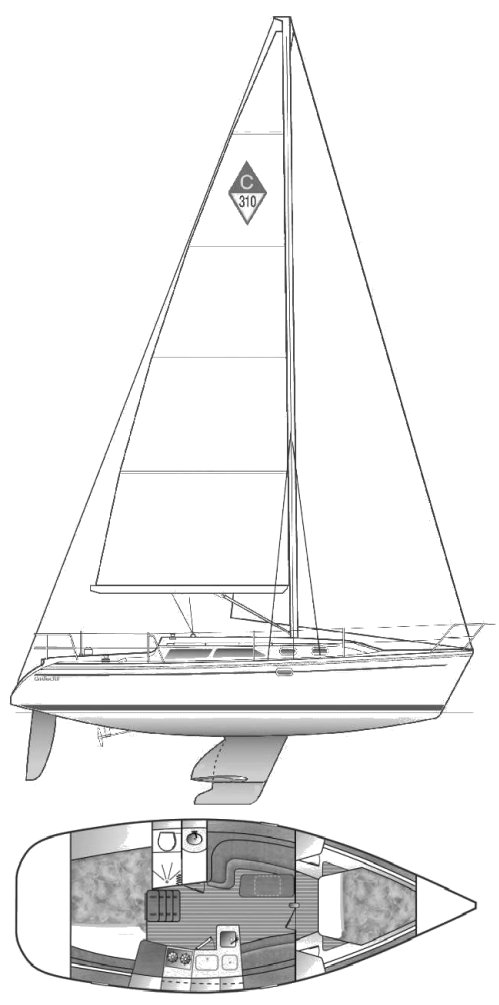

CATALINA 310
Built by Catalina Yachts (USA)
• Designed by Gerry Douglas
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Fin w/bulb & spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1999
Last Built:
2011
Dimensions
Length Overall (LOA):
9.45 m
Length Waterline (LWL):
8.08 m
Beam:
3.51 m
Draft (Max):
1.75 m
Max Height:
14.25 m
Weight & Ballast
Displacement:
4,672 kg
Ballast:
1,814 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
23.33 m²
Mainsail Area:
22.49 m²
Total Sail Area (calculated):
45.82 m²
Sail Area (reported):
45.80 m²
I (Fore Triangle Height):
13.03 m
J (Fore Triangle Base):
3.58 m
P (Mainsail Hoist):
11.35 m
E (Boom Length):
3.96 m
Engine & Systems
Engine Make:
Universal
Engine Type:
Diesel
Engine Model:
M25XP
Engine Power:
26 HP
Fuel Capacity:
102 L
Water Capacity:
208 L
Performance Ratios
Hull Speed:
6.90 knots
SA/Displacement (Calculated):
16.40
SA/Displacement (Reported):
16.72
Ballast/Disp Ratio:
38.83%
Displacement/Length:
247.09
Comfort Ratio:
22.10
Capsize Screening:
2.12
S-Number:
2.18
Notes
Wing Keel draft: 4.83'/1.47m; ballast: 4,400 lbs/1995.8 kg; displacement: 10,700 lbs/4853.4 kg
