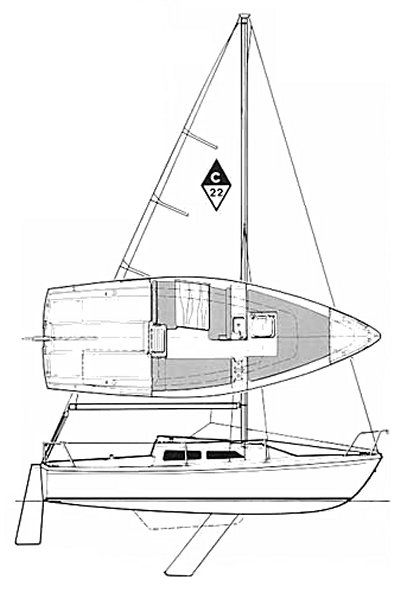

CATALINA 22
Built by Catalina Yachts (USA)
• Designed by Frank V. Butler
Market Value
No pricing data available yet.
Help the community by adding price information you know about this model.
General Information
Hull Type:
Swing Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1969
Number Built:
15000
Dimensions
Length Overall (LOA):
6.55 m
Length Waterline (LWL):
5.89 m
Beam:
2.34 m
Draft (Max):
1.52 m
Draft (Min):
0.61 m
Max Height:
7.62 m
Weight & Ballast
Displacement:
1,021 kg
Ballast:
249 kg
Sail Plan
Foresail Area:
9.60 m²
Mainsail Area:
9.42 m²
Total Sail Area (calculated):
19.02 m²
Sail Area (reported):
19.70 m²
I (Fore Triangle Height):
7.87 m
J (Fore Triangle Base):
2.44 m
P (Mainsail Hoist):
6.40 m
E (Boom Length):
2.94 m
Engine & Systems
Performance Ratios
Hull Speed:
5.89 knots
SA/Displacement (Calculated):
18.76
SA/Displacement (Reported):
19.80
Ballast/Disp Ratio:
24.44%
Displacement/Length:
139.07
Comfort Ratio:
11.53
Capsize Screening:
2.34
S-Number:
3.85
Notes
The CATALINA 22 is one of the most popular sailboats ever in anything close to this size,. 15,000 boats sold (2009)
