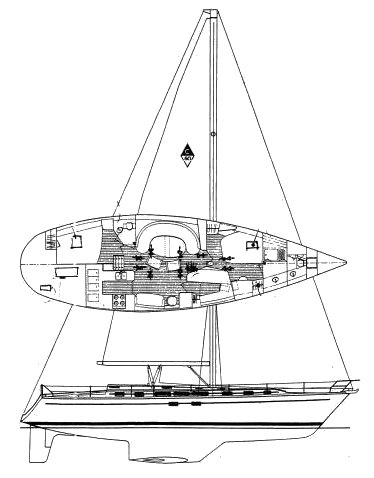

CATALINA (MORGAN) 50
Built by Catalina Yachts (USA)
General Information
Hull Type:
Wing Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
2001
Dimensions
Length Overall (LOA):
15.37 m
Length Waterline (LWL):
13.49 m
Beam:
4.50 m
Draft (Max):
1.70 m
Weight & Ballast
Displacement:
16,329 kg
Ballast:
6,010 kg
Sail Plan
Foresail Area:
56.66 m²
Mainsail Area:
46.26 m²
Total Sail Area (calculated):
102.92 m²
Sail Area (reported):
102.94 m²
I (Fore Triangle Height):
18.14 m
J (Fore Triangle Base):
6.25 m
P (Mainsail Hoist):
16.41 m
E (Boom Length):
5.64 m
Engine & Systems
Engine Type:
Diesel
Engine Power:
75 HP
Performance Ratios
Hull Speed:
8.91 knots
SA/Displacement (Calculated):
15.99
SA/Displacement (Reported):
16.33
Ballast/Disp Ratio:
36.81%
Displacement/Length:
185.49
Comfort Ratio:
33.51
Capsize Screening:
1.79
S-Number:
2.80
Notes
Also called CATALINA-MORGAN 50 and built primarily for the charter trade.
