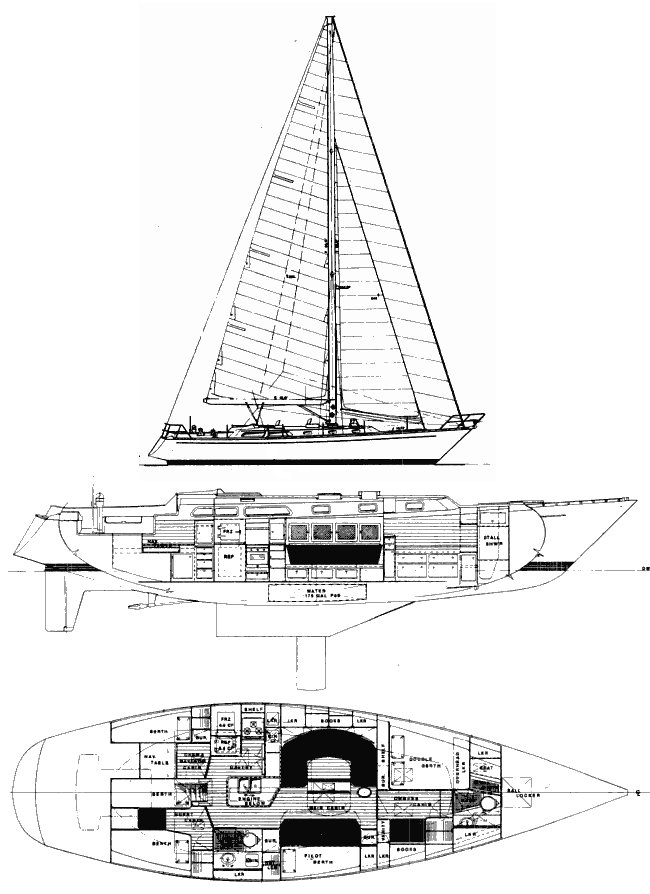

ALDEN 54
Built by Alden Yachts Inc. (USA)
• Designed by Alden
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Cutter
Construction:
FG
First Built:
1985
Last Built:
2002
Dimensions
Length Overall (LOA):
16.48 m
Length Waterline (LWL):
12.19 m
Beam:
4.37 m
Draft (Max):
3.20 m
Draft (Min):
1.68 m
Weight & Ballast
Displacement:
16,556 kg
Ballast:
6,804 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
51.73 m²
Mainsail Area:
42.09 m²
Total Sail Area (calculated):
93.82 m²
Sail Area (reported):
113.43 m²
I (Fore Triangle Height):
18.35 m
J (Fore Triangle Base):
5.64 m
P (Mainsail Hoist):
16.25 m
E (Boom Length):
5.18 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4.236
Engine Power:
75 HP
Fuel Capacity:
379 L
Water Capacity:
662 L
Performance Ratios
Hull Speed:
8.47 knots
SA/Displacement (Calculated):
14.44
SA/Displacement (Reported):
17.83
Ballast/Disp Ratio:
41.10%
Displacement/Length:
254.60
Comfort Ratio:
36.81
Capsize Screening:
1.73
S-Number:
1.91
Notes
Alden design #1180. (ALDEN 50/52/54) Similar to ALDEN 50 (#1180) but with extended stern.
