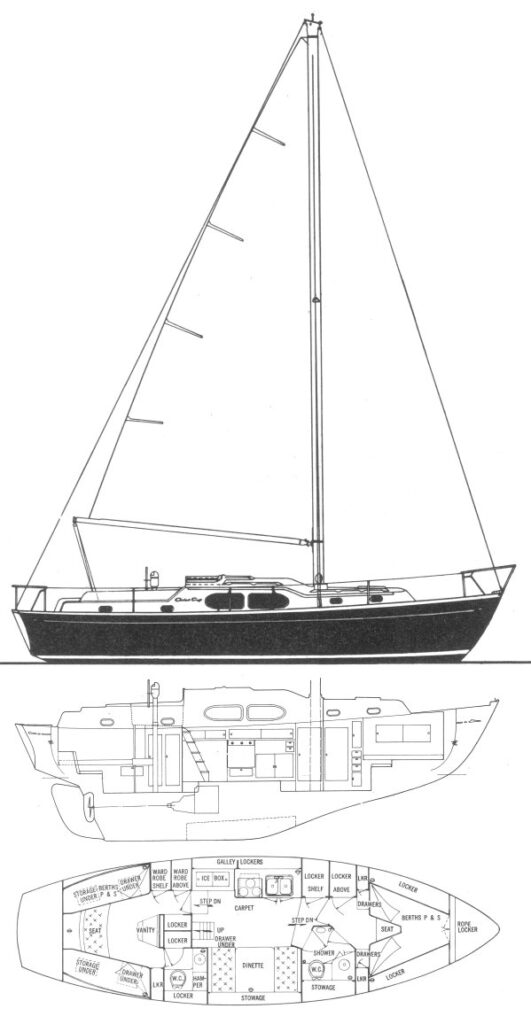

CARIBBEAN 35 (CHRIS-CRAFT)
Built by Chris-Craft (USA)
• Designed by Sparkman & Stephens
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1965
Last Built:
1976
Number Built:
100
Dimensions
Length Overall (LOA):
10.72 m
Length Waterline (LWL):
8.08 m
Beam:
3.35 m
Draft (Max):
1.43 m
Weight & Ballast
Displacement:
8,165 kg
Ballast:
2,268 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.71 m²
Mainsail Area:
27.93 m²
Total Sail Area (calculated):
53.64 m²
Sail Area (reported):
53.61 m²
I (Fore Triangle Height):
13.11 m
J (Fore Triangle Base):
3.92 m
P (Mainsail Hoist):
11.28 m
E (Boom Length):
4.95 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-107
Fuel Capacity:
303 L
Water Capacity:
379 L
Performance Ratios
Hull Speed:
6.90 knots
SA/Displacement (Calculated):
13.23
SA/Displacement (Reported):
13.49
Ballast/Disp Ratio:
27.78%
Displacement/Length:
431.80
Comfort Ratio:
39.21
Capsize Screening:
1.68
S-Number:
0.82
Notes
S&S design #1657.X.(this design was modified a number of times).
