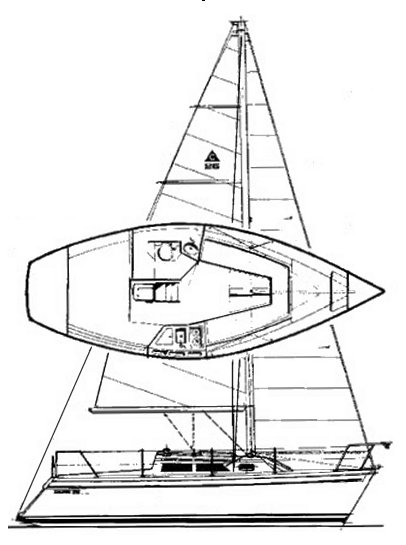

CAPRI 26 (CATALINA)
Built by Catalina Yachts (USA)
• Designed by Frank Butler/Gerry Douglas
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1990
Last Built:
1999
Number Built:
320
Dimensions
Length Overall (LOA):
7.98 m
Length Waterline (LWL):
6.99 m
Beam:
3.00 m
Draft (Max):
1.47 m
Weight & Ballast
Displacement:
2,381 kg
Ballast:
862 kg
Sail Plan
Foresail Area:
13.30 m²
Mainsail Area:
14.10 m²
Total Sail Area (calculated):
27.40 m²
Sail Area (reported):
27.41 m²
I (Fore Triangle Height):
10.03 m
J (Fore Triangle Base):
2.65 m
P (Mainsail Hoist):
8.41 m
E (Boom Length):
3.35 m
Engine & Systems
Performance Ratios
Hull Speed:
6.42 knots
SA/Displacement (Calculated):
15.37
SA/Displacement (Reported):
15.67
Ballast/Disp Ratio:
36.19%
Displacement/Length:
194.66
Comfort Ratio:
16.17
Capsize Screening:
2.27
S-Number:
2.61
Notes
Wing/shoal draft:3.42'/1.05m; ballast: 1,750 lbs / 793 kg; displacement: 5,100 lbs / 2310 kg
