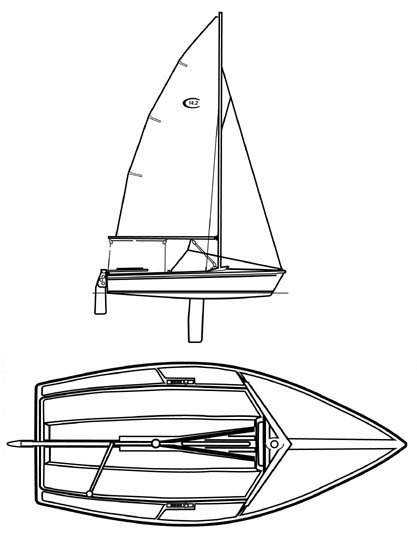

CAPRI 14.2 (CATALINA)
Built by Catalina Yachts (USA)
• Designed by Ted Carpentier/Frank Butler
General Information
Hull Type:
Centerboard Dinghy
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1983
Number Built:
5200
Dimensions
Length Overall (LOA):
4.32 m
Length Waterline (LWL):
4.04 m
Beam:
1.88 m
Draft (Max):
1.07 m
Draft (Min):
0.10 m
Weight & Ballast
Displacement:
154 kg
Sail Plan
Foresail Area:
3.61 m²
Mainsail Area:
6.82 m²
Total Sail Area (calculated):
10.43 m²
Sail Area (reported):
10.22 m²
I (Fore Triangle Height):
4.75 m
J (Fore Triangle Base):
1.52 m
P (Mainsail Hoist):
5.26 m
E (Boom Length):
2.59 m
Engine & Systems
Performance Ratios
Hull Speed:
4.88 knots
SA/Displacement (Calculated):
36.30
SA/Displacement (Reported):
36.17
Displacement/Length:
65.25
Comfort Ratio:
3.44
Capsize Screening:
3.54
S-Number:
8.20
Notes
Derived originally from the OMEGA 14.
