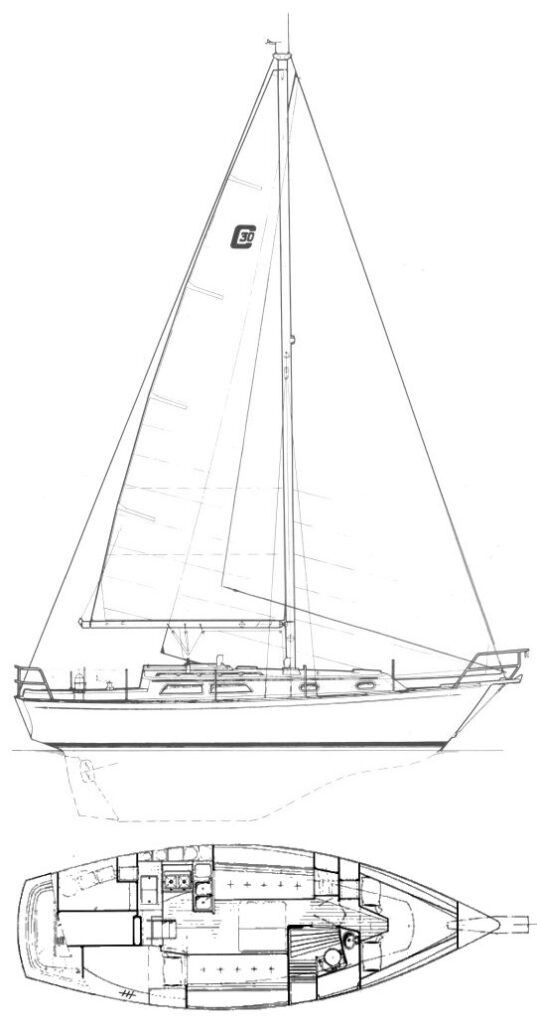

CAPE DORY 30 MK II
Built by Cape Dory Yachts (USA)
• Designed by Clive M. Dent
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1987
Last Built:
1990
Number Built:
31
Dimensions
Length Overall (LOA):
9.30 m
Length Waterline (LWL):
7.37 m
Beam:
3.20 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
4,763 kg
Ballast:
1,905 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
25.50 m²
Mainsail Area:
19.96 m²
Total Sail Area (calculated):
45.46 m²
Sail Area (reported):
45.99 m²
I (Fore Triangle Height):
12.32 m
J (Fore Triangle Base):
4.14 m
P (Mainsail Hoist):
10.69 m
E (Boom Length):
3.73 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
21A
Engine Power:
23 HP
Fuel Capacity:
76 L
Water Capacity:
265 L
Performance Ratios
Hull Speed:
6.59 knots
SA/Displacement (Calculated):
16.06
SA/Displacement (Reported):
16.57
Ballast/Disp Ratio:
40.00%
Displacement/Length:
331.98
Comfort Ratio:
27.16
Capsize Screening:
1.92
S-Number:
1.48
Notes
Available with a cutter rig as an option.
