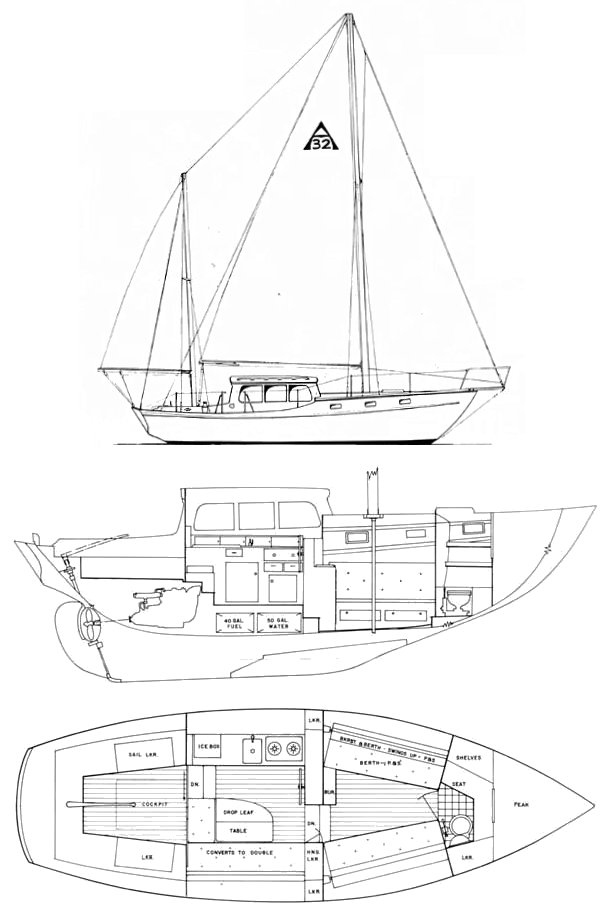

ALDEN 32 MOTOR SAILER
Built by Cheoy Lee Shipyard Ltd.(HK)
• Designed by John G. Alden & Co.
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1967
Last Built:
1973
Number Built:
14
Dimensions
Length Overall (LOA):
9.60 m
Length Waterline (LWL):
7.24 m
Beam:
3.20 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
6,033 kg
Sail Plan
Sail Area (reported):
44.59 m²
Engine & Systems
Engine Make:
Volvo
Engine Type:
Diesel
Engine Model:
MD-19
Fuel Capacity:
151 L
Water Capacity:
189 L
Performance Ratios
Hull Speed:
6.53 knots
SA/Displacement (Reported):
13.73
Displacement/Length:
443.21
Comfort Ratio:
34.40
Capsize Screening:
1.78
Notes
Alden design #1004. First known as the WINSOME CLASS. Sloop or ketch.
