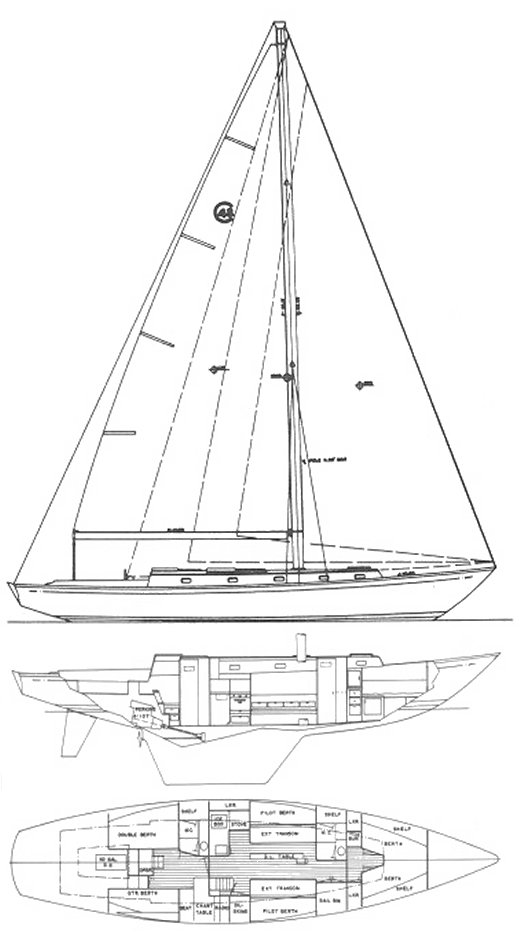

CAL 48
Built by Jensen Marine (USA)
• Designed by C. William Lapworth
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1966
Last Built:
1970
Number Built:
24
Dimensions
Length Overall (LOA):
14.55 m
Length Waterline (LWL):
10.67 m
Beam:
3.66 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
11,340 kg
Ballast:
4,309 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
48.54 m²
Mainsail Area:
48.14 m²
Total Sail Area (calculated):
96.68 m²
Sail Area (reported):
96.71 m²
I (Fore Triangle Height):
16.76 m
J (Fore Triangle Base):
5.79 m
P (Mainsail Hoist):
14.69 m
E (Boom Length):
6.55 m
Engine & Systems
Engine Make:
Perkins
Engine Type:
Diesel
Engine Model:
4-167M
Fuel Capacity:
227 L
Water Capacity:
416 L
Performance Ratios
Hull Speed:
7.93 knots
SA/Displacement (Calculated):
19.15
SA/Displacement (Reported):
19.56
Ballast/Disp Ratio:
38.00%
Displacement/Length:
260.31
Comfort Ratio:
36.36
Capsize Screening:
1.64
S-Number:
2.30
