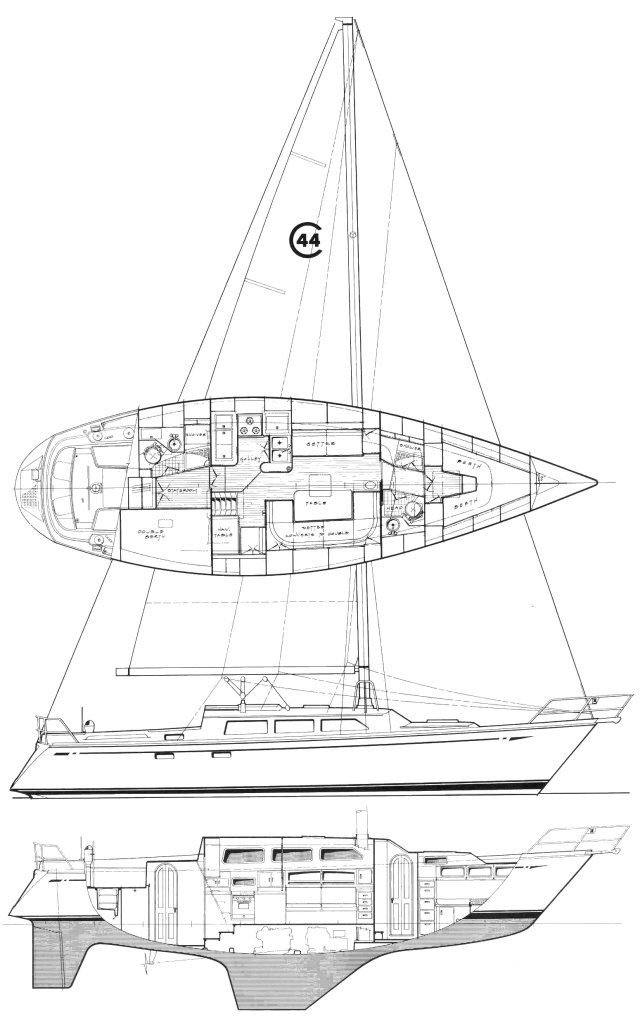

CAL 44
Built by Bangor Punta Marine
• Designed by Raymond Hunt & Assoc.
General Information
Hull Type:
Fin with rudder on skeg
Rigging Type:
Cutter
Construction:
FG
First Built:
1984
Number Built:
21
Dimensions
Length Overall (LOA):
13.26 m
Length Waterline (LWL):
11.05 m
Beam:
4.11 m
Draft (Max):
1.98 m
Weight & Ballast
Displacement:
11,476 kg
Ballast:
4,672 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
42.02 m²
Mainsail Area:
37.90 m²
Total Sail Area (calculated):
79.92 m²
Sail Area (reported):
79.90 m²
I (Fore Triangle Height):
16.46 m
J (Fore Triangle Base):
5.11 m
P (Mainsail Hoist):
14.63 m
E (Boom Length):
5.18 m
Engine & Systems
Engine Make:
Westerbeke
Engine Type:
Diesel
Engine Model:
W58
Engine Power:
58 HP
Fuel Capacity:
303 L
Water Capacity:
757 L
Performance Ratios
Hull Speed:
8.07 knots
SA/Displacement (Calculated):
15.71
SA/Displacement (Reported):
16.03
Ballast/Disp Ratio:
40.71%
Displacement/Length:
237.11
Comfort Ratio:
31.79
Capsize Screening:
1.84
S-Number:
2.20
Notes
Shoal draft version available.
