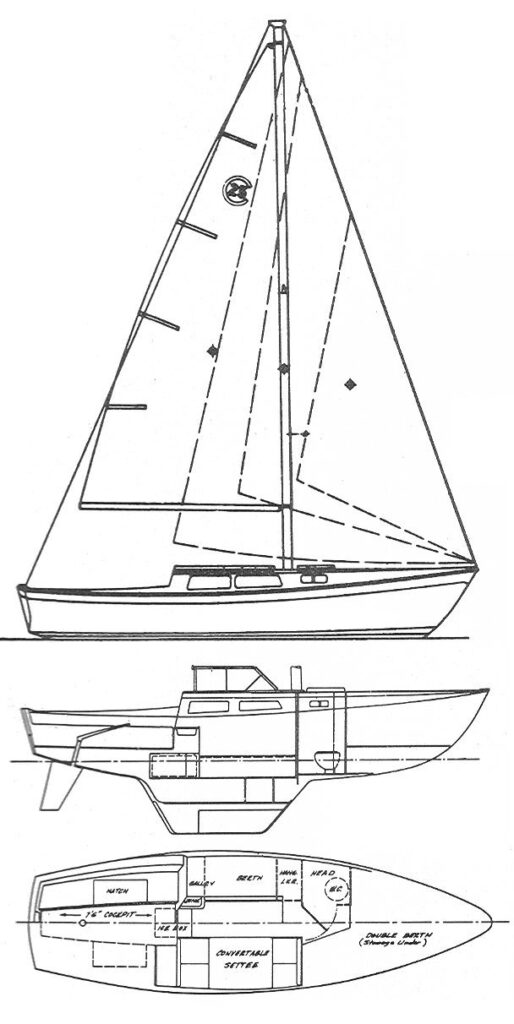

CAL 25
Built by Jensen Marine (USA)
• Designed by C. William Lapworth
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
Fiberglass
First Built:
1965
Last Built:
1976
Number Built:
1848
Dimensions
Length Overall (LOA):
7.62 m
Length Waterline (LWL):
6.10 m
Beam:
2.44 m
Draft (Max):
1.22 m
Weight & Ballast
Displacement:
1,814 kg
Ballast:
771 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
13.84 m²
Mainsail Area:
12.77 m²
Total Sail Area (calculated):
26.61 m²
Sail Area (reported):
26.57 m²
I (Fore Triangle Height):
9.08 m
J (Fore Triangle Base):
3.05 m
P (Mainsail Hoist):
7.62 m
E (Boom Length):
3.35 m
Engine & Systems
Engine Make:
OB
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calculated):
17.90
SA/Displacement (Reported):
18.21
Ballast/Disp Ratio:
42.50%
Displacement/Length:
223.21
Comfort Ratio:
18.01
Capsize Screening:
2.02
S-Number:
2.57
Notes
Flush deck with 'pop top' companionway. One of the most popular CAL models.
