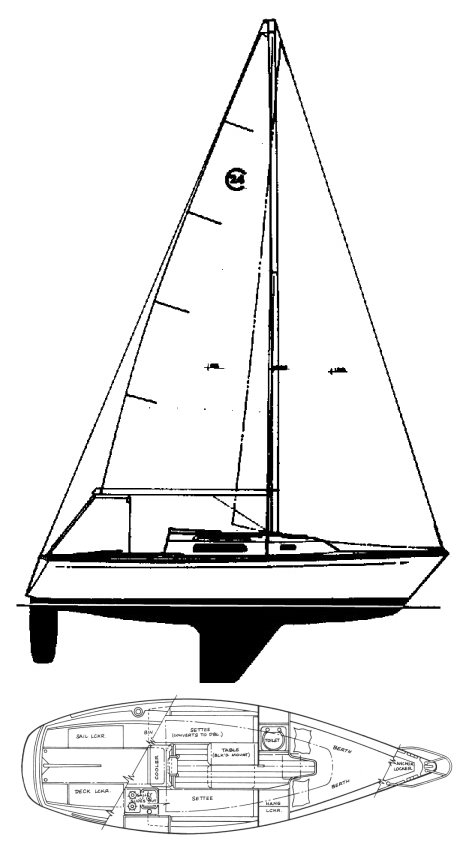

CAL 24 (HUNT)
Built by Bangor Punta Marine (USA)
• Designed by C. Raymond Hunt & Assoc.
General Information
Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1983
Dimensions
Length Overall (LOA):
7.52 m
Length Waterline (LWL):
6.10 m
Beam:
2.44 m
Draft (Max):
1.30 m
Weight & Ballast
Displacement:
1,497 kg
Ballast:
533 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
12.85 m²
Mainsail Area:
11.36 m²
Total Sail Area (calculated):
24.21 m²
Sail Area (reported):
24.25 m²
I (Fore Triangle Height):
9.07 m
J (Fore Triangle Base):
2.83 m
P (Mainsail Hoist):
7.85 m
E (Boom Length):
2.90 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
8 HP
Fuel Capacity:
57 L
Water Capacity:
45 L
Performance Ratios
Hull Speed:
5.99 knots
SA/Displacement (Calculated):
18.51
SA/Displacement (Reported):
18.89
Ballast/Disp Ratio:
35.61%
Displacement/Length:
184.15
Comfort Ratio:
14.93
Capsize Screening:
2.15
S-Number:
3.13
Notes
Shoal Draft version:
