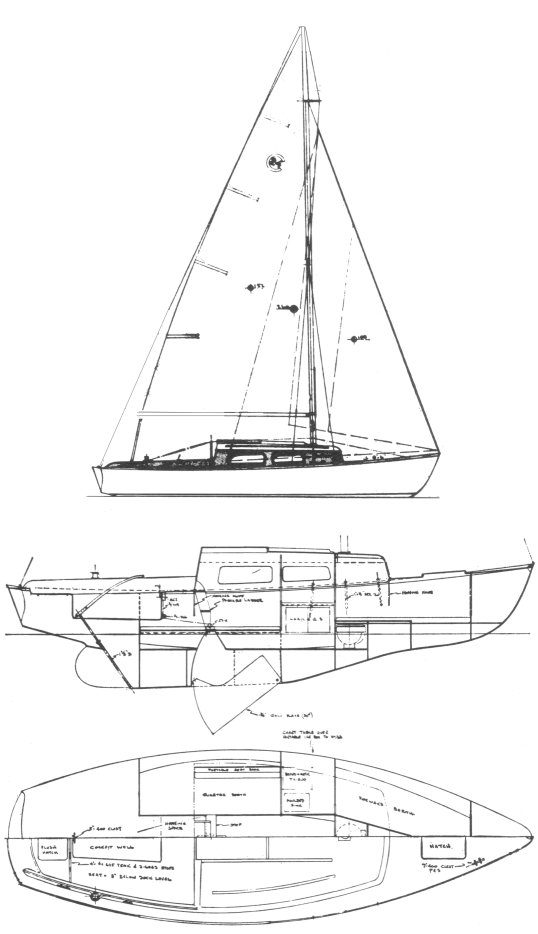

CAL 24
Built by Jensen Marine (USA)
• Designed by Bill Lapworth
General Information
Hull Type:
Keel/Cbrd.
Rigging Type:
Fractional Sloop
Construction:
FG
First Built:
1958
Last Built:
1965
Number Built:
184
Dimensions
Length Overall (LOA):
7.43 m
Length Waterline (LWL):
6.11 m
Beam:
2.44 m
Draft (Max):
1.37 m
Draft (Min):
0.76 m
Weight & Ballast
Displacement:
1,361 kg
Ballast:
454 kg
Ballast Type:
Lead w/ steel cb
Sail Plan
Foresail Area:
10.07 m²
Mainsail Area:
14.16 m²
Total Sail Area (calculated):
24.23 m²
Sail Area (reported):
24.25 m²
I (Fore Triangle Height):
7.77 m
J (Fore Triangle Base):
2.59 m
P (Mainsail Hoist):
8.08 m
E (Boom Length):
3.51 m
Engine & Systems
Performance Ratios
Hull Speed:
6.00 knots
SA/Displacement (Calculated):
19.73
SA/Displacement (Reported):
20.13
Ballast/Disp Ratio:
33.33%
Displacement/Length:
166.16
Comfort Ratio:
13.60
Capsize Screening:
2.22
S-Number:
3.54
Notes
The first 'Cal' boat produced by Jensen Marine. Thanks to Roy Cundiff for providing the photo (taken by Michelle Kringen) of his boat.
