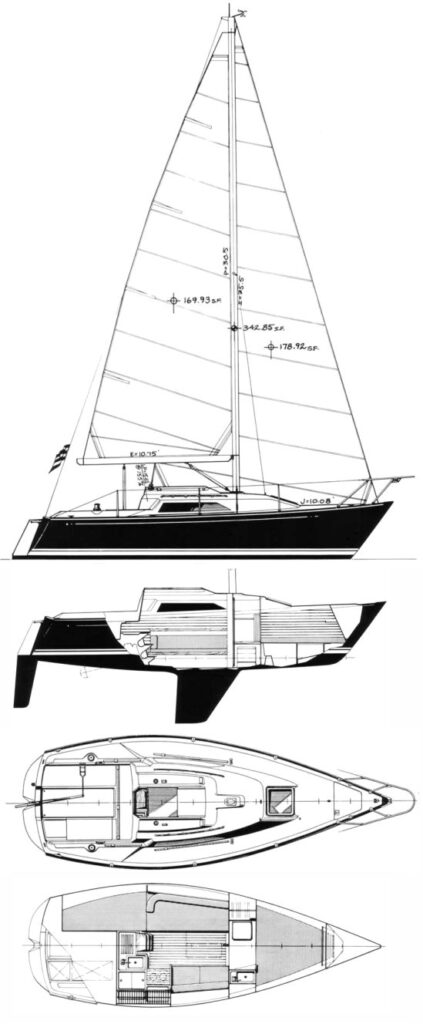

C&C 27 MK V
Built by C&C Yachts
• Designed by C&C Design Group
General Information
Hull Type:
Fin w/transom hung rudder
Rigging Type:
Masthead Sloop
Construction:
FG
First Built:
1984
Dimensions
Length Overall (LOA):
8.08 m
Length Waterline (LWL):
7.01 m
Beam:
2.82 m
Draft (Max):
1.47 m
Weight & Ballast
Displacement:
2,005 kg
Ballast:
778 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
16.62 m²
Mainsail Area:
15.23 m²
Total Sail Area (calculated):
31.85 m²
Sail Area (reported):
31.77 m²
I (Fore Triangle Height):
10.82 m
J (Fore Triangle Base):
3.07 m
P (Mainsail Hoist):
9.30 m
E (Boom Length):
3.28 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Model:
1GMF
Engine Power:
7.5 HP
Fuel Capacity:
38 L
Water Capacity:
57 L
Performance Ratios
Hull Speed:
6.43 knots
SA/Displacement (Calculated):
20.03
SA/Displacement (Reported):
20.37
Ballast/Disp Ratio:
38.80%
Displacement/Length:
162.18
Comfort Ratio:
14.67
Capsize Screening:
2.26
S-Number:
3.64
Notes
The C&C 27 MK V is a new design replacing C&C's earlier 27 footers.
