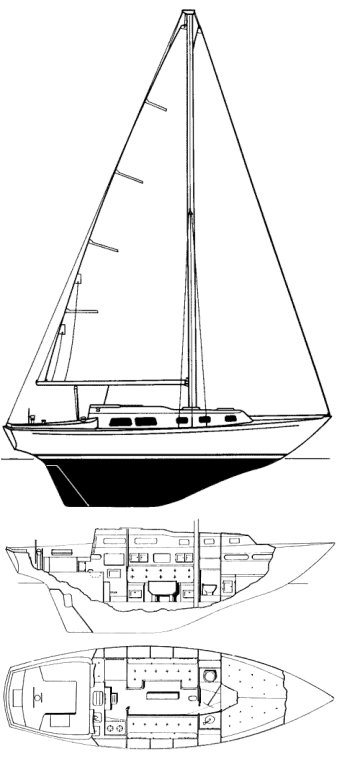

ALBERG 29
Built by Nye Yachts (CAN)
• Designed by Carl Alberg
General Information
Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
Construction:
FG solid hull, balsa cored deck
First Built:
1976
Last Built:
1985
Number Built:
80
Dimensions
Length Overall (LOA):
8.92 m
Length Waterline (LWL):
6.78 m
Beam:
2.80 m
Draft (Max):
1.37 m
Weight & Ballast
Displacement:
4,082 kg
Ballast:
1,814 kg
Ballast Type:
Lead
Sail Plan
Foresail Area:
20.62 m²
Mainsail Area:
18.08 m²
Total Sail Area (calculated):
38.70 m²
Sail Area (reported):
38.74 m²
I (Fore Triangle Height):
11.28 m
J (Fore Triangle Base):
3.66 m
P (Mainsail Hoist):
9.75 m
E (Boom Length):
3.71 m
Engine & Systems
Engine Make:
Yanmar
Engine Type:
Diesel
Engine Power:
15 HP
Fuel Capacity:
45 L
Water Capacity:
114 L
Performance Ratios
Hull Speed:
6.32 knots
SA/Displacement (Calculated):
15.15
SA/Displacement (Reported):
15.47
Ballast/Disp Ratio:
44.44%
Displacement/Length:
364.76
Comfort Ratio:
29.85
Capsize Screening:
1.77
S-Number:
1.22
